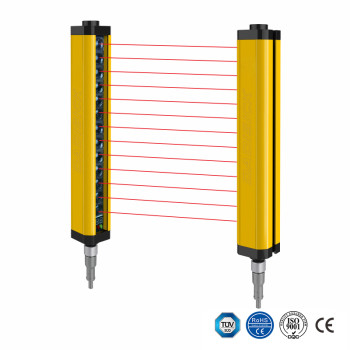

For Banner PVA Series Compact Measuring Light Curtain Replacement 25 mm Beam spacing | 2 m Operating Range | 100 mm to 375 mm Protective Height

group name: BANNER Measuring Light Curtains Replacement

Min Order: 1 piece

brand name: DADISICK

model: PVA Series | PVA100N6, PVA100N6E, PVA100N6R, PVA100P6, PVA100P6E, PVA100P6R, PVA225N6, PVA225N6E, PVA225N6R, PVA225P6, PVA225P6E, PVA225P6R, PVA300N6, PVA300N6E, PVA300N6R, PVA300P6, PVA300P6E, PVA300P6R, PVA375N6, PVA375N6E, PVA375N6R, PVA375P6, PVA375P6E, PVA375P6R

Delivery clauses under the trade mode: CIP

Acceptable payment methods: T/T

update time: Fri, 05 Dec 2025 17:25:29 GMT

contact supplier

Paramtents

Series: PVA Series
Beam spacing: 25 mm
Number of beams: 5/10/13/16
Operating range: 2 m
Protective height: 100 mm - 375 mm
Output type: NPN & PNP output
Connection type: M12
IP Degree of protection IP62

Packging & Delivery

Min Order1 piece

Briefing

DADISICK is a professional manufacturer of safety sensors with solid product manufacturing capabilities.

Detailed

Technical Data

Wiring Diagrams/Dimensional Drawings

Downloads

For Banner PVA Series Compact Measuring Light Curtain Replacement Parameter

Brand	From network			DADISICK
	Pair	Emitter	Receiver
Models	PVA100N6	PVA100N6E	PVA100N6R	QM06-20-100
	PVA100P6	PVA100P6E	PVA100P6R
	PVA225N6	PVA225N6E	PVA225N6R	QM12-20-220
	PVA225P6	PVA225P6E	PVA225P6R
	PVA300N6	PVA300N6E	PVA300N6R	QM16-20-300
	PVA300P6	PVA300P6E	PVA300P6R
	PVA375N6	PVA375N6E	PVA375N6R	QM20-20-380
	PVA375P6	PVA375P6E	PVA375P6R
Beam spacing	25 mm			20 mm
Number of beams	5, 10, 13 ,16			6, 12, 16, 20
Protective height	100 mm, 225 mm, 300 mm, 375 mm			100 mm, 220 mm, 300 mm 380mm
Operating range	2 m			0.3 m - 6 m
Output method	NPN & PNP output			NPN & PNP output
IP Degree of protection	IP62			IP65
Connector	M12			M12
Housing cross-section	15 mm × 30 mm			36 mm × 36 mm
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand Banner's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

QM series measuring light curtains

Model：

QM06-20-100, QM12-20-220, QM16-20-300, QM20-20-380

Data sheet download

FAQ

How is a Measuring Light Curtain installed?

A: Installation involves mounting the transmitter and receiver units on opposite sides of the detection area. Alignment is crucial for optimal performance. Many models come with alignment aids and mounting brackets to facilitate installation.
