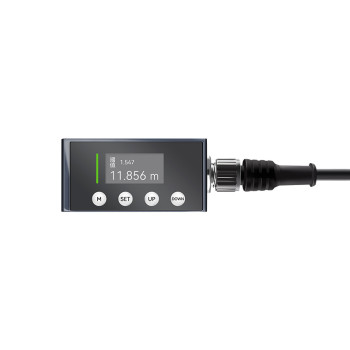

For Wenglor PNBC Series 250 to 650 mm and 200 to 1000 mm Detection Range Laser Distance Sensor Triangulation Replacement

group name: Wenglor Laser Distance Sensors Replacement

Min Order: 1 piece

brand name: DADISICK

model: PNBC Series | PNBC107, PNBC108

Delivery clauses under the trade mode: CIP

Acceptable payment methods: T/T

update time: Fri, 05 Dec 2025 22:21:06 GMT

contact supplier

Paramtents

Series: PNBC Series
Detection range: 250 to 650 mm, 200 to 1,000 mm
Repeatability: 80 µm, 100 µm
Sensing beam: Laser (red) 658nm
Output: NPN/PNP NO/NC Analog Output: 4...20 mA/0...10 V
Material Aluminum anodised
Connector: M12

Packging & Delivery

Min Order1 piece

Briefing

DADISICK is a professional manufacturer of laser displacement sensors with solid product manufacturing capabilities.

Detailed

Technical Data

Dimensions and Wiring

Downloads

For Wenglor PNBC Series 250 to 650 mm and 200 to 1000 mm Detection Range Laser Distance Sensor Triangulation Replacement Parameter

Brand		From network	DADISICK
Models		PNBC107	GFL-F100NM-485
Models		PNBC108	GFL-F100NM-485
Technical parameters	Detection range	250 to 650 mm, 200 to 1000 mm	100 to 1000 mm
	Repeatability	80 µm, 100 µm	1 mm
	Sensing beam	Laser (red) 658nm	Red semiconductor laser Class II laser 655+10nm<1mW
	Output	NPN/PNP NO/NC Analog Output: 4...20 mA/0...10 V	NPN/analog/RS485
	Power source	15 to 30 V DC	12V-24VDC+10% pulsation P-P10%
	Material	Aluminum, anodised	Aluminum
	Connector	M12	With 8-core composite cable 2m
	Enclosure rating	IP67	IP67
	Ambient operating temperature	-10 to 40 °C	-10C to +45℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand Wenglor's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

DADISICK LASER RANGING SENSOR GFL-F Series

Laser Displacement Sensors GFL-G series

GFL-F100NM-485

Datasheet download

FAQ

1. What are the installation requirements for laser displacement sensors?

Laser displacement sensors should be installed in a stable, vibration-free location, ensuring the laser beam is unobstructed. The installation position and angle should be adjusted according to specific measurement needs, following the manufacturer's installation guidelines.

2. Do laser displacement sensors get affected by ambient light during measurements?

Laser displacement sensors can be affected by strong ambient light. However, modern sensors usually have excellent anti-interference capabilities, using filtering and signal processing techniques to effectively reduce the impact of ambient light on measurement results.

3. What are the maintenance requirements for laser displacement sensors?

Keep the sensor's optical components clean to prevent dust and dirt from affecting measurement accuracy. Regularly inspect and replace any worn parts, and follow the manufacturer's maintenance manual to ensure long-term stable operation.

4. How are laser displacement sensors calibrated?

Laser displacement sensors typically require regular calibration to maintain measurement accuracy. Calibration methods include using standard measurement tools or calibration plates for comparative measurements, following the manufacturer's calibration procedures.

5. What is the measurement range of laser displacement sensors?

The measurement range of laser displacement sensors varies by model, typically spanning from a few millimeters to several hundred meters. Selecting the appropriate range depends on specific application requirements.
