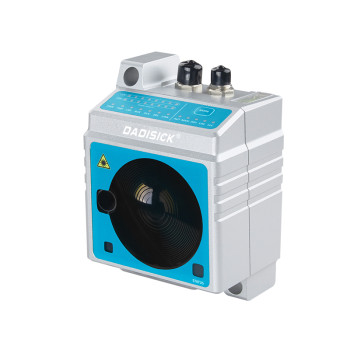

For Leuze DDLS 500 Optical Data Transmission Replacement | 200 m Operating Range

group name: Leuze Optical Data Transmission Replacement

Min Order: 1 piece

brand name: DADISICK

model: DDLS 500 Series | DDLS 508 200.3 L H, DDLS 508 200.3 L, DDLS 508 200.3 H, DDLS 508 200.3, DDLS 548i 200.3 L H, DDLS 548i 200.3 L, DDLS 548i 200.3 H, DDLS 548i 200.3, DDLS 538 200.4 L H S3, DDLS 538 200.4 H S3, DDLS 538 200.4 L S3, DDLS 538 200.4 S3, DDLS 538 200.4 L H S2, DDLS 538 200.4 H S2, DDLS 538 200.4 L S2, DDLS 538 200.4 S2, DDLS 508i 200.3 L H, DDLS 508i 200.3 L, DDLS 508i 200.3 H, DDLS 508i 200.3, DDLS 508 200.4 L H, DDLS 508 200.4 L, DDLS 508 200.4 H, DDLS 508 200.4, DDLS 548i 200.4 L H, DDLS 548i 200.4 L, DDLS 548i 200.4 H, DDLS 548i 200.4, DDLS 538 200.3 L H S3, DDLS 538 200.3 H S3, DDLS 538 200.3 L S3, DDLS 538 200.3 S3, DDLS 538 200.3 L H S2, DDLS 538 200.3 H S2, DDLS 538 200.3 L S2, DDLS 538 200.3 S2, DDLS 508i 200.4 L H, DDLS 508i 200.4 L, DDLS 508i 200.4 H, DDLS 508i 200.4

Delivery clauses under the trade mode: CIP

Acceptable payment methods: T/T

update time: Fri, 05 Dec 2025 17:45:59 GMT

contact supplier

Paramtents

Series: DDLS 500 Series
Transmission distance: 0.1 ... 200 m
Data transmission rate: 100 Mbit/s
Supply voltage: 18 …30 V DC
Power consumption: 200 mA@24 V (without heating)

Packging & Delivery

Min Order1 piece

Briefing

DADISICK's ST100 Series Optical Data Transmission Module can serve as a replacement for the DDLS 500.

Detailed

Technical Data

Wiring Diagrams

Downloads

For Leuze DDLS 500 Optical Data Transmission Replacement | 200 m Operating Range

Brand	From network		DADISICK
Models	DDLS 508 200.3 L H	DDLS 508 200.4 L H	ST100-200E3
	DDLS 508 200.3 L	DDLS 508 200.4 L
	DDLS 508 200.3 H	DDLS 508 200.4 H
	DDLS 508 200.3	DDLS 508 200.4
	DDLS 548i 200.3 L H	DDLS 548i 200.4 L H
	DDLS 548i 200.3 L	DDLS 548i 200.4 L
	DDLS 548i 200.3 H	DDLS 548i 200.4 H
	DDLS 548i 200.3	DDLS 548i 200.4
	DDLS 538 200.4 L H S3	DDLS 538 200.3 L H S3
	DDLS 538 200.4 H S3	DDLS 538 200.3 H S3
	DDLS 538 200.4 L S3	DDLS 538 200.3 L S3
	DDLS 538 200.4 S3	DDLS 538 200.3 S3
	DDLS 538 200.4 L H S2	DDLS 538 200.3 L H S2
	DDLS 538 200.4 H S2	DDLS 538 200.3 H S2
	DDLS 538 200.4 L S2	DDLS 538 200.3 L S2
	DDLS 538 200.4 S2	DDLS 538 200.3 S2
	DDLS 508i 200.3 L H	DDLS 508i 200.4 L H
	DDLS 508i 200.3 L	DDLS 508i 200.4 L
	DDLS 508i 200.3 H	DDLS 508i 200.4 H
	DDLS 508i 200.3	DDLS 508i 200.4
Dransmission distance	0.1 ... 200 m		200 m
Data transmission rate	100 Mbit/s		100 Mbit/s
Supply voltage	18 …30 V DC		DC 10V - 30V
Power consumption	200 mA at 24 V (without heating) 800 mA at 24 V (with heater)		3 W（max）
Interface	EtherNET/IP, PROFINET IO / RT, PROFINET IRT, PROFINET/PROFIsafe, TCP/IP 100 Mbit; PROFINET/PROFIsafe, PROFINET slave network device; EtherCAT FSoE, EtherCAT link down 70 ms; EtherCAT FSoE, EtherCAT link down 5 ms; TCP/IP 100 Mbit;		Ethernet, Unlimited
Light source	Laser, Infrared		Laser, Calibration light: 650 nm, Communication light source wavelength: E3 785 nm/E4 850nm
Light angle	1° (Opening angle)		1° (divergence angle) 1.5° ( receiving angle)
Connection	Connector M12		Connector M12
Dimensions	156 × 100 × 122 mm		102 × 84 × 140.5 mm
IP rating	IP65		IP65
Operating temperature	-5 ... 50 °C (Without heating) -35 ... 50 °C (With heating)		-10℃~55°C (indoor use)
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The optical data transmission devices we provide are manufactured by DADISICK and are not official products of Leuze or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Leuze products, please contact the brand's authorized representative directly.

Product Recommendations

Optical Data Transmission Module ST100 Series

Model:

ST100-80E3

ST100-100E3

ST100-200E3

Datasheet download

FAQ

What communication protocols do these sensors support?

Supported protocols include EtherCAT, PROFINET, EtherNET/IP, RS485, PROFIBUS, etc., depending on the model and application scenario.
