For Leuze AMS 100i Optical Positioning Sensor Replacement | 40 m Measuring Range
- group name
- Leuze Optical Distance Sensor Replacement
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- AMS 100i Series | AMS 108i 40 H, AMS 108i 40, AMS 108i 40 BTA H, AMS 108i 40 BTA, AMS 107i 40 H, AMS 107i 40, AMS 107i 40 BTA H, AMS 107i 40 BTA
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T
- update time
- Sat, 06 Dec 2025 07:04:11 GMT
Paramtents
Series: AMS 100i Series
Measuring range: 0.1 - 40 m
Light spot size: 40 mm
Measurement accuracy: ± 2 mm
Resolution: 0.001 ... 10 mm
Packging & Delivery
-
Min Order1 piece
Briefing

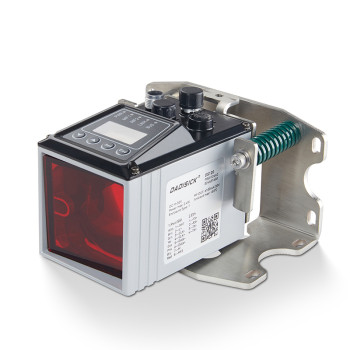

DADISICK's DS Series Long-Distance Laser Rangefinder can serve as a replacement for AMS 100i Optical Positioning Sensor.
Detailed
For Leuze AMS 100i Optical Positioning Sensor Replacement | 40 m Measuring Range
| Brand | From network | DADISICK | ||
| Models | AMS 108i 40 H | AMS 107i 40 H | DS-80 | |
AMS 108i 40 | AMS 107i 40 | |||
AMS 108i 40 BTA H | AMS 107i 40 BTA H | |||
AMS 108i 40 BTA | AMS 107i 40 BTA | |||
Measuring range | 0.1 - 40 m | MAX. 80 m | ||
Light spot size | 40 mm | 100 mm (@80 m) | ||
Measurement accuracy | ± 2 mm | ±2 mm | ||
Repeatability | 0.6 mm (3 sigma) | 1 mm | ||
Measurement frequency | — | 1000 Hz | ||
Resolution | 0.001 ... 10 mm | 0.1 mm | ||
Max. movement speed | 10 m/s | 15 m/s | ||
Supply voltage | 18 ... 30 V, DC | DC 9 V ... 30 V | ||
Current consumption | 250 mA without heating / 500 mA with heating | 0.2 A at 12 V DC | ||
Laser class | Laser class 2 acc. to EN 60825-1; CDRH | Class 2 | ||
Light source | Laser diode, red light, wavelength 655 nm | Red laser (visible light) | ||
Interface | EtherNet TCP/IP | SSI | SSI, Ethernet 100BASE-TX (Data Transmission) | |
Connection | M12 | M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI) | ||
Dimensions | 70 mm x 139 mm x 118 mm | 123 × 69.5 × 90 mm | ||
IP rating | IP 65 | IP65 | ||
Operating temperature | -5 – 60 °C without heating / -30 – 60 °C with heating | -10℃~+55℃ | ||
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | ||||
Product Model Display Instructions
The brands and specifications displayed on this page are for reference and product selection purposes only. The Optical Positioning Sensors we provide are manufactured by DADISICK and are not official products of Leuze or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Leuze products, please contact the brand's authorized representative directly.
Product Recommendations
DS Series Long-Distance Laser Rangefinder
FAQ
1. What is the measurement range of the DS Series laser distance sensor?
The measurement range is 0.2 to 200 meters, though the exact range may vary depending on the
type of reflector and surface characteristics.
2. Does the DS Series support dynamic measurements?
Yes, the DS Series supports dynamic measurements, allowing real-time positioning of high-speed moving objects with a measurement frequency of up to 1000 Hz.
3. Does the product feature environmental compensation?
Yes, the DS Series is equipped with an environmental light interference compensation algorithm, ensuring high-accuracy measurements under complex lighting conditions.
4. What are the size and shape of the laser beam?
The beam starts as a small-diameter dot and gradually spreads over distance. The exact dimensions depend on the measurement range.
5. Does the DS Series support multi-target measurement?
No, this series is designed for single-point measurement. Multi-target measurement can be achieved by using multiple devices.
