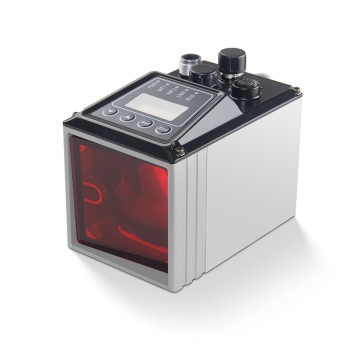

For Acuity Laser AS1100 Long Distance Sensor Replacement | 150 m Measuring Range with an Acuity Reflective Plate

group name: Acuity Laser Long Range Sensors Replacement

Min Order: 1 piece

brand name: DADISICK

model: AS1100 Series | AS1100

Delivery clauses under the trade mode: CIP

Acceptable payment methods: T/T

update time: Fri, 05 Dec 2025 20:36:05 GMT

contact supplier

Paramtents

Series: AS1100 Series
Measuring range: 40 to150 m
Light spot size: 7 x 3 mm; 28 x 13 mm; 55 x 30 mm
Measurement accuracy: ± 3 mm
Resolution: 0.1 mm

Packging & Delivery

Min Order1 piece

Briefing

DADISICK's DS Series Long-Distance Laser Rangefinder can serve as a replacement for Acuity Laser AS1100 Long Distance Sensor.

Detailed

Technical Data

Wiring Diagrams

Downloads

For Acuity Laser AS1100 Long Distance Sensor Replacement | 150 m Measuring Range with an Acuity Reflective Plate

Brand	From network	DADISICK
Models	AS1100	DS-200
Measuring range	40 to 150 m Measuring Range with an Acuity Reflective Plate	MAX. 200 m
Light spot size	Laser spot diameter @ 10, 50, 100 m 7 x 3 mm; 28 x 13 mm; 55 x 30 mm	245 mm (@200 m)
Measurement accuracy	± 3 mm	±2 mm
Repeatability	0.7 mm	1 mm
Measurement frequency	100 Hz	1000 Hz
Resolution	0.1 mm	0.1 mm
Max. movement speed	—	15 m/s
Supply voltage	12 - 30 Volts DC	DC 9 V ... 30 V
Current consumption	Max. Current: 0.2A	0.2 A at 12 V DC
Laser class	Class 2, Complies with 21 CFR 1040.10 and with Laser Notice 50, IEC/EN60825-1:2014	Class 2
Light source	650 nm, 1 mW visible RED	Red laser (visible light)
Interface	Serial: RS232, RS422, RS485, (USB connection only for configuration), ethernet option available; Analog output: 4-20 mA/0-20mA software configurable	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	Serial cable with DB9 connector (optional serial to USB cable), AC power supply with 110 VAC or 240 VAC.	M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	—	123 × 69.5 × 90 mm
IP rating	IP65	IP65
Operating temperature	-10 to 50 °C	-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Laser Distance Sensors we provide are manufactured by DADISICK and are not official products of Acuity Laser or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Acuity Laser products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. How does the DS Series communicate?

Communication is achieved using the SimiView software, which operates on the TCP/IP protocol.

2. Should network security be a concern?

Yes, users must take measures to prevent malicious network interference to ensure the safe operation of the device.
