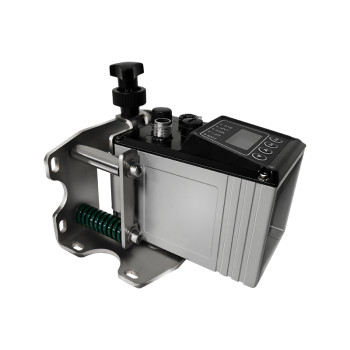

For IFM O1D Series Photoelectric Distance Sensor Replacement | 100 m Measuring Range
- group name
- IFM Photoelectric Distance Sensor Replacement
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- O1D Series | O1D209
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T
- update time
- Fri, 05 Dec 2025 23:31:08 GMT
Paramtents
Series: O1D Series
Measuring range: 1...100 m
Light spot size: 200 mm
Measurement accuracy: ± 245 mm@25 Hz; ± 65 mm@1 Hz
Resolution: —
Packging & Delivery
-
Min Order1 piece
Briefing
DADISICK's DS Series Long-Distance Laser Rangefinder can serve as a replacement for Distance sensors type O1D with 100 m range.
Detailed
For IFM O1D Series Photoelectric Distance Sensor Replacement | 100 m Measuring Range
| Brand | From network | DADISICK | ||
| Models | O1D209 | DS-120 | ||
Measuring range | 1...100 m; (Reflector) | MAX. 120 m | ||
Light spot size | 200 mm | 150 mm (@120 m) | ||
Measurement accuracy | ± 245 mm@25 Hz ± 65 mm@1 Hz | ±2 mm | ||
Repeatability | ± 225 mm@25 Hz ± 45 mm@1 Hz | 1 mm | ||
Measurement frequency | 1...25 Hz | 1000 Hz | ||
Resolution | — | 0.1 mm | ||
Max. movement speed | — | 15 m/s | ||
Supply voltage | 18...30 V DC | DC 9 V ... 30 V | ||
Current consumption | < 150 mA | 0.2 A at 12 V DC | ||
Laser class | class 2 | Class 2 | ||
Light source | 650 nm, Laser | Red laser (visible light) | ||
Interface | IO-Link communication interface | SSI, Ethernet 100BASE-TX (Data Transmission) | ||
Connection | Connector: 1 x M12; coding: A | M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI) | ||
Dimensions | 59 x 42 x 52 mm | 123 × 69.5 × 90 mm | ||
IP rating | IP 67 | IP65 | ||
Operating temperature | -10...60°C | -10℃~+55℃ | ||
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | ||||
Product Model Display Instructions
The brands and specifications displayed on this page are for reference and product selection purposes only. The Photoelectric distance sensors we provide are manufactured by DADISICK and are not official products of IFM or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine IFM products, please contact the brand's authorized representative directly.
Product Recommendations
DS Series Long-Distance Laser Rangefinder
FAQ
1. What is the measurement range of the DS Series laser distance sensor?
The measurement range is 0.2 to 200 meters, though the exact range may vary depending on the
type of reflector and surface characteristics.
2. Does the DS Series support dynamic measurements?
Yes, the DS Series supports dynamic measurements, allowing real-time positioning of high-speed moving objects with a measurement frequency of up to 1000 Hz.
3. Does the product feature environmental compensation?
Yes, the DS Series is equipped with an environmental light interference compensation algorithm, ensuring high-accuracy measurements under complex lighting conditions.
4. What are the size and shape of the laser beam?
The beam starts as a small-diameter dot and gradually spreads over distance. The exact dimensions depend on the measurement range.
5. Does the DS Series support multi-target measurement?
No, this series is designed for single-point measurement. Multi-target measurement can be achieved by using multiple devices.
